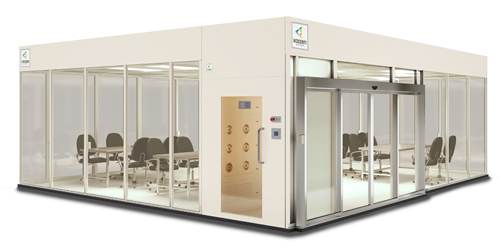

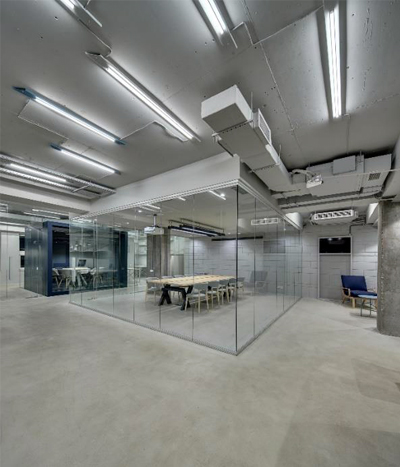

Bio Safe Moduler Clean Room



We are Manufacturer, Supplier, Exporter of Modular Clean Rooms, Softwall, Hardwall, Biosafe, Portable Cleanroom for Healthcare, Life Science, Medical Device Manufacturing, Pharmaceutical, Food Packing & Bottling Lines, Nano-Technologies, Nuclear Energy, Atomic Energy, Defence, Aerospace, Oil and Deep-Sea Exploration. We also provide Modular Clean Room Design, Build, Installation Services and Cleanroom Accessories, Components like Wall Panels, Doors, Windows, Switch Glass Privacy Windows, Flooring, Ceiling, Cleanroom Pass Through Chambers, Air Showers, Air-conditioning, Dehumidification Modules, Exhaust, FFU. Our setup is situated in Pune, Maharashtra, India and majorly we serve customers from Maharashtra, Gujarat, Tamil Nadu, South India.
A modular cleanroom is an environment-controlled room with a specific tolerable level of pollutants. At Kaizen, we design a complete cleanroom solution to satisfy customized requirements with ease. Kaizen's Modular Cleanroom delivers an ultra-clean working environment. We provide a clean and suitable environment with a controlled level of contamination as specified by particles per cubic feet. This type of environment promotes the execution of critical processes in the best possible way.
Prominently these industries are:


Services and products included:

Kaizen's Cleanrooms are ready for future requirements of expansion, adaptation, and relocation. Low cost, flexibility, and high-quality products for the Cleanroom are the critical features of our services. We deliver optimum solution for Cleanroom environments complying with the international standard of cleanliness.

Features:

We provide different Clean Room services:

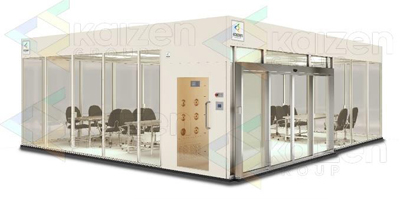

2.1 Hardwall Clean Rooms:

hard-wall-cleanroom

Kaizens Hard wall cleanroom is free-standing and highly reliable in managing critical operations. We ensure the positive pressure inside the room through rigid stainless-steel frame. It is necessary for preventing external contamination.

Kaizen's Hard Wall Cleanroom is best in sustaining higher internal pressure with variable wall dampers. These dampers regulate the air flow and the internal room pressure. The system is proven to reduce the infiltration caused by the flow of air through the bottom of the curtains.

Uniqueness:
Technical specifications (Frame structure):

Variables

Specifications

Frame Material

Powder coated steel/Aluminium

Internal height

2438.4mm

Overall height

3048mm

Ceiling

50.8 HD T-bar with anodized aluminum

Ceiling panel

Sealed edges

Partition panels

Acrylic/ Static-dissipative PVC/ Polycarbonate/ Polypropylene/ Tempered Glass/ Stainless Steel

Panel dimensions (In mm)

1219.2x2133.6

HEPA filter

99.995% efficient @ 0.3micron

Hard Wall Cleanroom Components

Following are the components of hardwall cleanroom:


1. Enclosure Section

1.1 Clean Room Wall Panel

Kaizen offers durable, easy to clean and install wall panels. Kaizen’s wall panels are made up of ISO grade materials and compatible to meet the international standards. We provide the customized wall panels to meet the client’s requirements.


Variables

Specifications

Standard Size (W x H)

1200x3000 mm

Thickness

25 to 150 mm

MOC

Powder coated/Precoated galvanised steel/ Stainless steel

Infill

PUF (Polyurethane Foam)
PIR (Poly Iso Rinate)
Mineral Wool/Glass wool/Rockwool
FRP
CPVC

Barrier wall panels

Acrylic



SDPVC



Polycarbonate

Profile

Aluminium/GI

Fire resistance class

F130 under EN 13501-2

Compliance

ISO 5

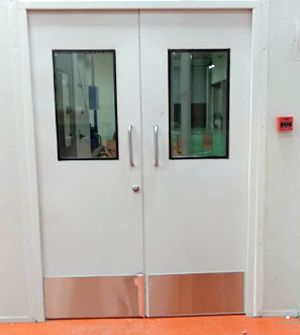

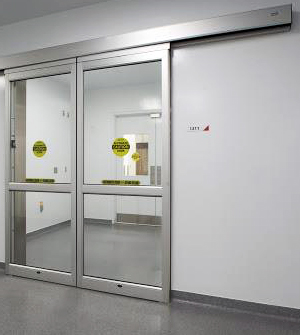

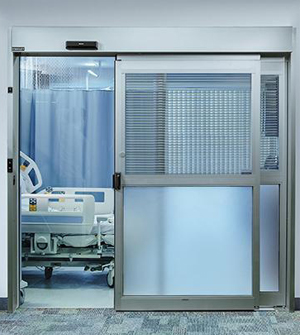

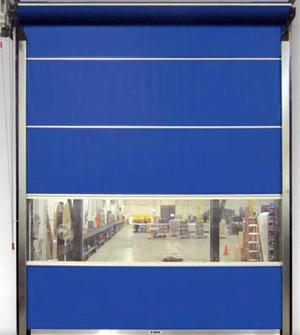

1.2 Cleanroom Doors


download

cleanroom-door
cleanroom-door
cleanroom-door
cleanroom-door

We design automatic and manual doors by using ISO graded materials. These doors possess a control panel at right side. Kaizen promises to deliver easy to install doors of standard and customized size.


Technical specifications:

Door type

Manual door

Door

Sliding door

Swing door

Panels

Acrylic/PVC

Acrylic/PVC

Panel type

Puff panel

Puff panel

Frame

Aluminium

Aluminium/Stainless steel

Dimensions (In mm)

1016x2083

914x2057 (Single swing)
1829x2057 (Double swing)

Door type

Automatic door

Door

Sliding door

Double slide door

Dimensions

2438.4x2336.8

3754.75x2336.8

Panels

Glass/PVC/Customized

Glass/PVC/Customized

Panel type

Puff panel

Puff panel

Frame

Aluminum

Aluminum

Compliance

UL, NFPA

UL, NFPA

Finish

Clear/Dark bronze

Clear/Dark bronze

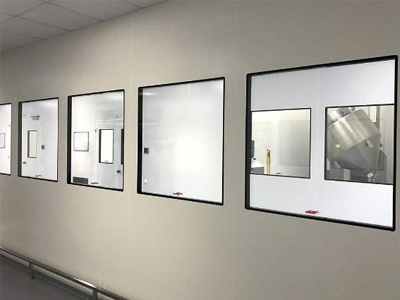

1.3 Clean Room Windows:


Kaizen provides pre-cut wall panels to accommodate customized window frame. We offer premium quality, easy to clean windows. These windows are encased into stainless steel for enhanced visibility. Tailored customization in window panels allows it for various wall panel material applications.

cleanroom-window-1

Technical specifications:

Single sided window

Double sided window

Construction

Nominal dimensions
(In mm)

Window material

Construction

Nominal dimensions
(In mm)

Window material

Framed window

14325.6x10972.8
10972.8x14630.4

Tempered glass

Framed window

14325.6x10972.8
10972.8x14630.4

Tempered glass

Fire-rated glass

Fire-rated glass

SDPVC

SDPVC

Polycarbonate

Polycarbonate

Acrylic

Acrylic

Frameless windows

14325.6x10972.8
10972.8x14630.4

Tempered glass

Frameless window

14325.6x10972.8
10972.8x14630.4

Tempered glass

Fire-rated glass

Fire-rated glass

SDPVC

SDPVC

Polycarbonate

Polycarbonate

Acrylic

Acrylic

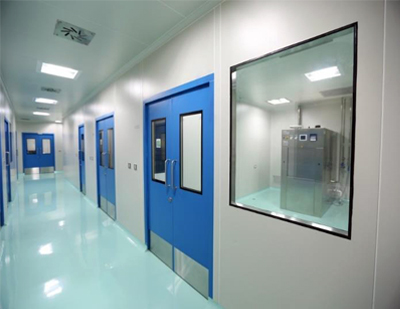

1.4 Clean Room Switch Glass Privacy Windows:


Kaizen provides the windows that can switch between fully transparent to opaque. These windows are useful in maintaining privacy inside cleanrooms. We design the switch glass privacy windows by considering the international standard. These window panels are available in customized configurations and ensure better security and higher durability.

cleanroom-window-2

Technical specifications:

Variables

Specifications

Glass type

Laminated/annealed/tempered

Size

1,828.6x3,683 mm

Environmental storage

-20° to 70°C

Operational range

-10° to 70°C

Electrical

65 VAC ± 5V

Power

>1 W/ft2

Switching time

Approx. 100 milliseconds at room temperature

Optical transmission

75% view angle

Life

10+ years

1.5 Cleanroom Flooring:


Kaizen delivers a complete flooring made up of ISO standard materials. Our flooring solutions produce a controlled environment inside the cleanroom. Flooring mats are available in customized designs and configurations to meet the complex requirement.


Technical specifications:

Variables

Specifications

Coating

Vinyl powder coated

Roll dimensions (W x L)

2x20 m

Tile format

608x608 mm

Colour

Blue/Grey/Customized

Thermal conductivity

0.25 W/(m.k)

Fire rating

Bf1-s1

Slip resistance

R9

Heat resistance

0° to 50°C

Air cleanliness class

ISO 4

Load resistance

40 kg/sq. cm

Static electrical propensity

<2000V

Electrical resistance

>1011 Ω

Particulate cleanability

85.66% reduction in particle contamination

The action of micro-organism on the flooring

Inert and resistant

Chemical resistant

Excellent

Resistance to gaseous H2O2

No damage

Compliance

CE marking

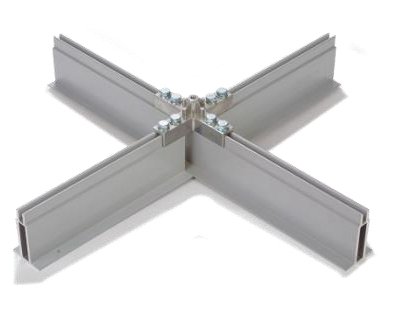

1.6 Cleanroom Ceiling:


Kaizen provides panels for cleanroom ceiling. These ceilings are easy to clean and perforated with excellent sound blocking. These panels are highly durable and provide cleanliness up to ISO class 7. Kaizen designs fire safe ceiling panels for versatile applications including cleanrooms, laboratories, and surgical areas.

ceiling-grid

Technical specifications:

Variables

Specifications

Ceiling grid

T-joists with slide in dividers

Ceiling grid material

Powder coated SS/ Stainless steel

Material

Polypropylene



Fire-safe SS 304



Powder coated steel



Clear Acrylic



SDPVC

Edge finish

Paint sealed for improved cleanroom performance

Coating

Antimicrobial

NRC

0.70

CAC

CAC 41

Temperature range

0°C-49°C

Humidity

RH 99%

Thermal insulation

0.40 m2k/W

Weight

5.28 kgs/m2

Colour

White

2. Cleanroom Supplies Section :

2.1 Pass-Through Chambers:


Kaizen provides an exclusive option to keep your cleanroom area clean. Kaizens pass-through chambers conduct the comfortable and safe material transfer. These chambers control the level of cross-contamination. At Kaizen wall mounted, or floor mounted pass-through chambers are available with customized configurations.


Technical specifications:

Variables

Accessories

Chamber material

Stainless steel

Construction

Double wall design

Mounting

Floor/Wall

Dimensions

Customized

Latch

All steel

Viewing window

Tempered glass

Accessories

Automatic doors

Alert alarms

ULPA filtered air shower

LED lights

Smart access control

2.2 Air Shower


Kaizens air shower system prevents the entry of contaminant particles into the cleanroom. We achieve this with scrubbing action by using a high-velocity air jet. We supply air showers of customized configurations.

air-shower


Technical specifications:

Variables

Specifications

Air change

Up to 743/hr

Initial airflow velocity

20-22 m/s

Number of nozzles

6-36

Air shower duration

12 seconds

Persons/min

4-23

Person per cycle

1-6

Pre-filter

85% Arrestance, 20% efficiency

HEPA filter

99.99% efficient @ 0.3micron

Frame

Electro galvanised steel

Coating

White oven baked epoxy powder coated

Electrical

220-240V/50-60 Hz
110-130V/50-60 Hz

Dimensions

Customized

Included accessories

Photophilic pressure gauge



Control panel



LED lights



Ionizing bars

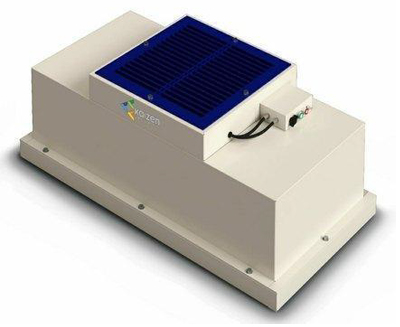

Fan filtration unit

Compliance

UL listed

Technical specifications (Filtration/blower module):

Variables

Specifications

Power

5 HP

Supply

230-440V/50-60Hz

CFM @2” WG

1820

RPM

3600

Wheel diameter

343 mm

Filter

99.99% efficient @ 0.3 micron

Class

H 14

3. Air Treatment Section :

3.1 Cleanroom Air-conditioning:


Kaizen’s cleanroom air conditioning solutions provide the comforting environment to perform critical operations. We develop the system by considering NABH guidelines. Kaizen provides standard or customized air conditioning module to meet the customer requirement.


A. Technical specifications (Air cooled unit):

(23.9°C DB, 16.1°C WB, 11.1°C DP) 44.6% RH

Total

BTU/hr

54000 to 220000



kW

15.9 to 64.4

Sensible

BTU/hr

54000 to 220000



kW

15.9 to 64.4

(26.7°C DB, 17.1°C WB, 11.1°C DP) 37.8% RH

Total

BTU/hr

57000 to 231000



kW

16.7 to 67.7

Sensible

BTU/hr

57000 to 231000



kW

16.7 to 67.7

(26.7°C DB, 18°C WB, 11.1°C DP) 32.2% RH

Total

BTU/hr

60000 to 242000



kW

17.5 to 71.0

Sensible

BTU/hr

60000 to 242000



kW

17.5 to 71.0

Electric Reheat

Housing

Stage aluminum

Capacity (kW)

6 to 18

Number of elements

2 to 6

Number of stages

1 to 3

Supply

230V/50-60 Hz

Hot Gas Reheat (24°C)

Capacity (kW)

9.5 to 13.5

Humidification

Capacity (kg/hr)

5 to 8

Power input (kW)

3.7 to 6

Flush cycle

Auto

Evaporator Blower

Blades

Backward curved

Motor

Direct drive EC motor

Nominal horsepower

3.8 to 4

CFM @ 50Pa

3500 to 12600

B. Technical specifications (Water cooled units):

(23.9°C DB, 16.1°C WB, 11.1°C DP) 44.6% RH

Total

BTU/hr

55000 to 254000

kW

16.0 to 74.4

Sensible

BTU/hr

55000 to 254000

kW

16.0 to 74.4

(26.7°C DB, 17.1°C WB, 11.1°C DP) 37.8% RH

Total

BTU/hr

57000 to 269000

kW

16.8 to 78.8

Sensible

BTU/hr

57000 to 269000

kW

16.8 to 78.8

(26.7°C DB, 18°C WB, 11.1°C DP) 32.2% RH

Total

BTU/hr

60000 to 284000

kW

17.7 to 83.2

Sensible

BTU/hr

60000 to 284000

kW

17.7 to 83.2

Electric Reheat

Housing

Stage aluminum

Capacity (kW)

6 to 18

Number of elements

2 to 6

Number of stages

1 to 3

Supply

230V/50-60 Hz

Hot Gas Reheat (24°C)

Capacity (kW)

9.1 to 12.7

Humidification

Capacity (kg/hr)

5 to 8

Power input (kW)

3.7 to 6

Flush cycle

Auto

Evaporator Blower

Blades

Backward curved

Motor

Direct drive EC motor

Nominal horsepower

3.8 to 4

CFM @ 50Pa

3500 to 12600

3.2 Cleanroom Dehumidification Modules:


Humidity control is essential for maintaining a longer shelf life of pharmaceuticals, semiconductors, and many other sensitive products. Kaizen provides smart dehumidification modules for humidification stability complying with international standards.


Technical specifications:

Variables

Specifications

Housing

Stainless steel

Coating

Zinc coat

Desiccant material

Silica gel

Material size

2-5 mm



Humidity @21°C temperature

Adsorption rate

50% RH

498.9 to 2994 g/hr

30% RH

362.9 to 2268 g/hr

10% RH

136.1 to 816.5 g/hr

Nominal Dimensions
(mm)(WDH)

Process Airflow
(CFM`)

Reactivation Airflow
(CFM)

Weight
(kg)

Full Load AMP

Reactivation Heat
(BTUH)

Power
(Watts)

Voltage

756x311x559

50

15

39

12

3,240

1,400

120V/60Hz

924x622x692

150

45

86

18

9,725

3,850

240V/60Hz

1130x845x819

300

90

136

32.9

19,448

6,900

240V/60Hz

3.3 Cleanroom Exhaust:


Kaizen provides exhaust for cleanroom to offer proper ventilation inside the cleanroom creating clean zones. Kaizen offers high capacity exhaust with silent operation for customized configurations.


Technical specifications:

Variables

Specifications

CFM

3000

Power

108 VAC



208 VAC

Motor size

0.25 to 2 HP

Average air velocity

13 m/s

Mount

Ceiling/Floor

HEPA filter

99.99% efficient @ 0.3micron

Fan type

High volume centrifugal fan

2.2 Portable cleanroom/ Softwall cleanroom:

Kaizen’s soft wall cleanroom solutions are cost-effective, highly flexible, and easy to install. The portable cleanrooms or soft walls expand rooms to maintain positive pressure inside. We have designed soft wall cleanroom by considering flexibility benefits of construction. Such a portable room has versatile applications with free-standing structure and suspended ceiling.

Uniqueness Components of soft wall cleanroom:

1.Enclosure section


1.1 Ceiling panels:


Kaizen provides superior quality easy to clean ceiling panels for softwall cleanrooms. We produce the panels by using ISO graded materials complying with international standards. Fire rated panels with excellent noise cancellation property are available in customized configurations.


Technical specifications:

Variables

Specifications

Ceiling grid

T-joists with slide in dividers

Ceiling grid material

Powder coated SS/ Stainless steel

Material

Polypropylene



Fire-safe SS 304



Powder coated steel



Clear Acrylic



SDPVC

Edge finish

Paint sealed for improved cleanroom performance

Coating

Antimicrobial

NRC

0.70

CAC

CAC 41

Temperature range

0°C-49°C

Humidity

RH 99%

Thermal insulation

0.40 m2k/W

Weight

5.28 kgs/m2

Colour

White

Compliance

ISO 7

1.2 Cleanroom Curtains:

Kaizen offers highly durable curtains for softwall cleanrooms. Clear curtains and strip shields are available in customized configurations to meet specialized cleanroom requirements.

Technical specifications:

Variables

Specifications

Frame

Aluminum/Stainless steel

Ceiling

T-grid ceiling

Nominal internal height

2438.4 mm

HEPA filter

99.995% efficient @ 0.3micron

Curtain material

Static dissipative vinyl



SDPVC



Polyurethane

Surface resistivity

1.8x1010 ohms/sq.

Material type

80 mil clear

Door type

Strip shield door

Strip width

200-1500 mm

Nominal strip width

203.2 mm with 50.8mm overlap

Locking

Flexible magnet strips/Dual lock strips

Compliance

ISO 5

2. Air Treatment Section

2.1 Cleanroom FFU

Kaizen provides fan filtration unit of all sizes. The cleanroom FFU are useful for ventilation and silent operation. Kaizen’s fan filtration unit can be used in ultra-hygienic environments to generate uniform laminar airflow. Low profile design ensures easy installation with customized space requirements.

Fan-Filter-Unit

Performance specifications for standard FFU:

Variable

Specifications

Structure

Powder coated carbon steel/ Stainless steel

Colour

White

Pre-filter

92% efficient @ 5.0micron

HEPA filter

99.995% efficient @ 0.3micron

Class

H 14

Operating resistance

230 Pa (Max.)

Supply

230-240V/50-60Hz

Fans

Double inlet centrifugal

Motor type

EC brushless motor

Blade curve

Forward curved blades

Speed

Variable speed controller

Noise level

58-63 dB (1m from filter face)

Compliance

UL

Accessories

Alarm for filter replacement
Upstream challenge port
Digital airflow meter
Minihelix pressure gauge
External Sounder

Optional Features

ULPA filter

99.999995% efficient @ 0.12micron

Class

U 17

Unit

Room side replaceable unit

Nominal dimensions

Airflow

Face velocity

Weight

Running load

(mm)

(m3/s)

(m/s)

(kg)

(Watts)

660x660x455

0.15

0.45

45

500

965x660x455

0.23

0.45

56

500

1270x660x455

0.31

0.45

67

500

1575x660x455

0.39

0.45

83

1000

1880x660x455

0.47

0.45

96

1000

Variable

Specifications

Structure

Powder coated carbon steel/ Stainless steel

Colour

White

Pre-filter

92% efficient @ 5.0micron

HEPA filter

99.995% efficient @ 0.3micron

Class

H 14

Operating resistance

230 Pa (Max.)

Supply

230-240V/50-60Hz

Fans

Double inlet centrifugal

Motor type

EC brushless motor

Blade curve

Forward curved blades

Speed

Variable speed controller

Noise level

58-63 dB (1m from filter face)

Compliance

UL

Accessories

Alarm for filter replacement
Upstream challenge port
Digital airflow meter
Minihelix pressure gauge
External Sounder

Optional Features

ULPA filter

99.999995% efficient @ 0.12micron

Class

U 17

Unit

Room side replaceable unit

Nominal dimensions

Airflow

Face velocity

Weight

Running load

(mm)

(m3/s)

(m/s)

(kg)

(Watts)

660x660x455

0.15

0.45

45

500

965x660x455

0.23

0.45

56

500

1270x660x455

0.31

0.45

67

500

1575x660x455

0.39

0.45

83

1000

1880x660x455

0.47

0.45

96

1000

2.3 Biosafe Cleanroom

Bio-Safe Cleanroom is a rigid, self-supporting structure without a separate frame or external bracing. Kaizens Biosafe cleanroom enhances thermal stability and lowers energy consumption. We provide comprehensive and quality cleanrooms for critical bio/pharmaceutical operations. We have all sizes of cleanrooms that are easy to clean and sterilize and capable of generating ISO 5-8 standard cleanliness. Kaizen delivers highly controlled clean environments by taking the support of UL-certified materials and the state of art technology.

biosafety-cleanrooms
Uniqueness:

Components of biosafe cleanroom


1. Enclosure Section


1.1 Wall Panels:


Kaizen offers durable, easy to clean and install panels. Our wall panels are compatible with international standards and made up of ISO grade materials. We provide tailored and customized wall panels as per the client’s requirements.

Technical specifications:

Variables

Specifications

Standard Size (W x H)

1200x3000 mm

Thickness

25 to 150 mm

MOC

Powder coated/Precoated galvanised steel/ Stainless steel

Infill

PUF (Polyurethane Foam)
PIR (Poly Iso Rinate)
Mineral Wool/Glass wool/Rockwool
FRP
CPVC

Barrier wall panels

Acrylic



SDPVC



Polycarbonate

Profile

Aluminium/GI

Fire resistance class

F130 under EN 13501-2

Compliance

ISO 5

Colour

White

Corners

Coved corners

Coving radius

495.3 mm

Seal

Seam sealant

1.2 Windows:


Kaizen provides pre-cut wall panels to accommodate customized window frame. We offer high-quality and easy to clean windows encased with stainless steel for enhanced visibility. Tailored customization in window panels works in various wall panel material applications.


Technical specifications:

Single sided window

Double sided window

Construction

Nominal dimensions
(In mm)

Window material

Construction

Nominal dimensions
(In mm)

Window material

Framed window

14325.6x10972.8
10972.8x14630.4

Tempered glass

Framed window

14325.6x10972.8
10972.8x14630.4

Tempered glass





Fire-rated glass





Fire-rated glass





SDPVC





SDPVC





Polycarbonate





Polycarbonate





Acrylic





Acrylic

Frameless windows

14325.6x10972.8
10972.8x14630.4

Tempered glass

Frameless window

14325.6x10972.8
10972.8x14630.4

Tempered glass





Fire-rated glass





Fire-rated glass





SDPVC





SDPVC





Polycarbonate





Polycarbonate





Acrylic





Acrylic

1.3 Switch Glass Privacy Windows:


Kaizen provides the windows that can switch between fully transparent to opaque. These switch glass privacy windows are useful in maintaining privacy inside cleanrooms. We produce the windows by matching the international standards and customized configurations. Our panels ensure better security and higher durability.


Technical specifications:

Variables

Specifications

Glass type

Laminated/annealed/tempered

Size

1,828.6x3,683 mm

Environmental storage

-20° to 70°C

Operational range

-10° to 70°C

Electrical

65 VAC ± 5V

Power

>1 W/ft2

Switching time

Approx. 100 milliseconds at room temperature

Optical transmission

75% view angle

Life

10+ years

1.4 Cleanroom Flooring:


Kaizen is specialized in delivering a complete flooring solution. We use ISO standard materials for generating a controlled environment inside the cleanroom. We develop flooring mats that are of customized designs and configurations. These mats are capable of fulfilling the customer’s requirement.


Technical specifications:

Variables

Specifications

Coating

Vinyl powder coated

Roll dimensions (W x L)

2x20 m

Tile format

608x608 mm

Colour

Blue/Grey/Customized

Thermal conductivity

0.25 W/(m.k)

Fire rating

Bf1-s1

Slip resistance

R9

Heat resistance

0° to 50°C

Air cleanliness class

ISO 4

Load resistance

40 kg/sq. cm

Static electrical propensity

<2000V

Electrical resistance

>1011 Ω

Particulate cleanability

85.66% reduction in particle contamination

The action of micro-organism on the flooring

Inert and resistant

Chemical resistant

Excellent

Resistance to gaseous H2O2

No damage

Compliance

CE marking

1.5 Cleanroom Ceiling


Kaizen provides customized ceiling configurations for cleanrooms as per client’s requirements. To view technical specifications of the cleanroom ceiling for biosafe cleanroom, please visit cleanroom ceiling section in hard wall cleanrooms.

2.4 Cleanroom Environment Control Accessories

Powerful accessories are essential for maintaining the cleanroom. The technologically advanced cleanrooms should contain powerful accessories arsenal. Kaizen offers cleanroom solutions with cutting-edge technology complying with international standards.

Kaizen’s cleanroom accessories include:

1. Cleanroom Lighting


Kaizen provides easy to clean, dust free, and energy efficient lighting solutions for hygienic facilities like cleanrooms. We do perform the thorough quality testing of our products. We ensure the extended durability of about 50,000 hours without any maintenance. We supply the energy efficient lights that generate bright light with very less operational cost.

cleanroom-lighting

Type1: Florescent Lights Features:

Type2: LED panels performance specifications:

Variables

Specifications

Power

49-77W

Ceiling grid (module length)

300-600 mm

Light source

Replaceable LED

Mains voltage

220V/50-60Hz

Ceiling type

Exposed T-bar ceiling

Colour

White

Color rendering index

>80

Average life

25,000-70,000 hours

Driver failure rate

1% per 5000hours

Ambient temperature

+25 °C

Operating temperature range

-20°C to +35°C

Connection

Push in connector

ISO class

2-9 Fraunhofer certified

Certification

IP65

Housing material

Sheet steel

Cover material

Tempered glass

Internal optic material

Aluminum

Heatsink

Aluminum sheet steel

LED type

Square LED

Rectangular LED

Luminous flux (In lm)

3600, 3900, 6000, 6300

6000, 6300

Color temperature

3000 or 4000 k

3000 or 4000 k

Initial luminaire efficiency

109- 120 lm/W

109- 120 lm/W

Luminous flux tolerance

+/- 10%

+/- 10%

Dimensions

596x596 mm

1196x296 mm

2. Cleanroom Ionizers


Cleanroom ionizers provide a steady stream of static neutralizing ions to protect sensitive materials against ESD. Kaizen’s ionizer bar generates a flow of positive and negative ions to enhance cleanliness. Its aerodynamic design can be easily mounted on T-bar ceiling without producing any disturbance to uniform airflow by FFU.


Technical specifications:

Variables

Specifications

Input voltage

240V/50-60Hz

Power

3.5 W

Output voltage

7.5 kV

Indicators

Green power LED

Ion Emission

Isostat steady state DC

Emitter points

Machined titanium/ Single crystal silicon

Replacement cycle

2-3 years

Airflow

60 fpm

Discharge

20 sec. or less for +/-1000V to +/-100V discharge at 24”1

Balance

+/-25V at 1’

Mounting

Two clips and hangers are included

Operating temperature

15°C to 35°C

Humidity

20-60% RH

Dimensions (HxWxL)

53.34x28.702x279.4 mm
134.62x73.66x708.66 mm

Customization

Lengths according to the requirement

Weight

255g per 0.3m

Compliance

UL, US

ISO Class

Class 2


Request Quote
